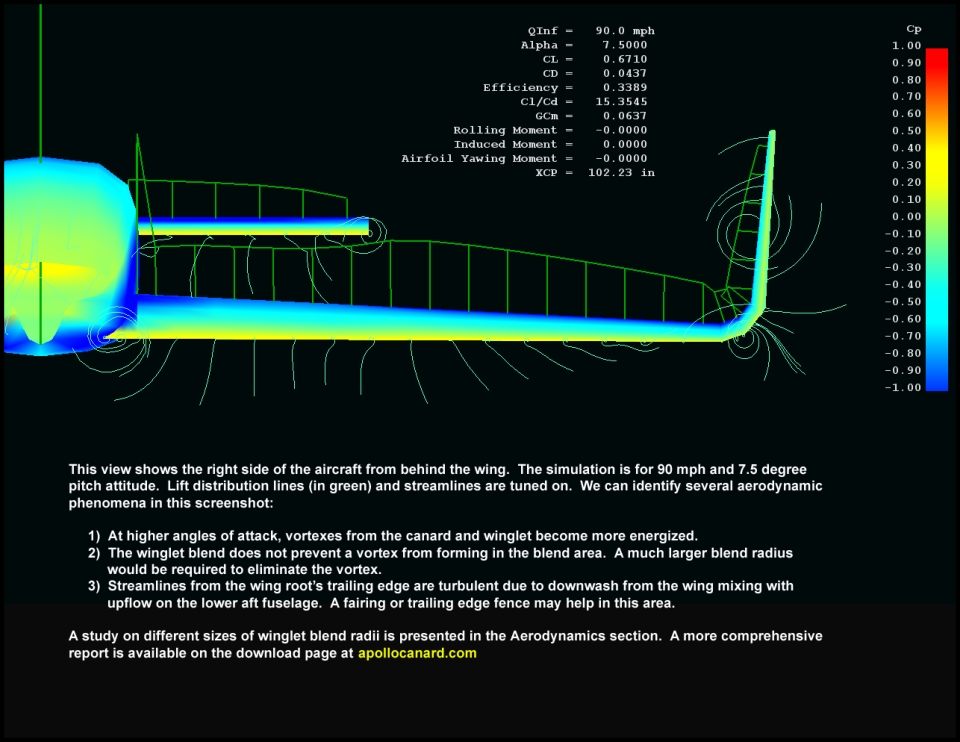

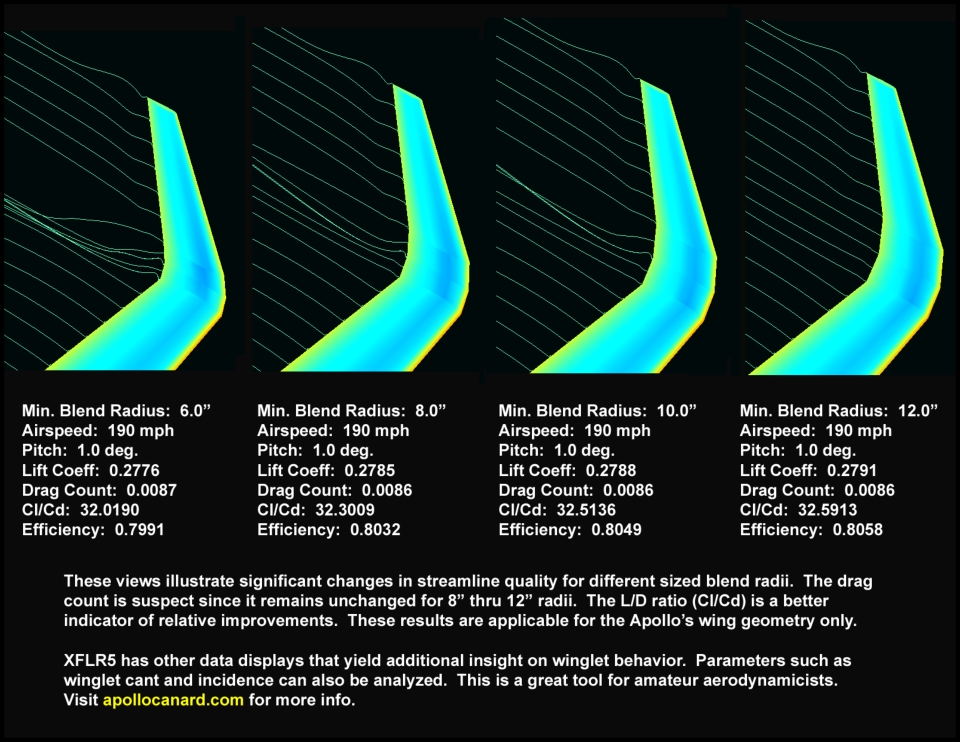

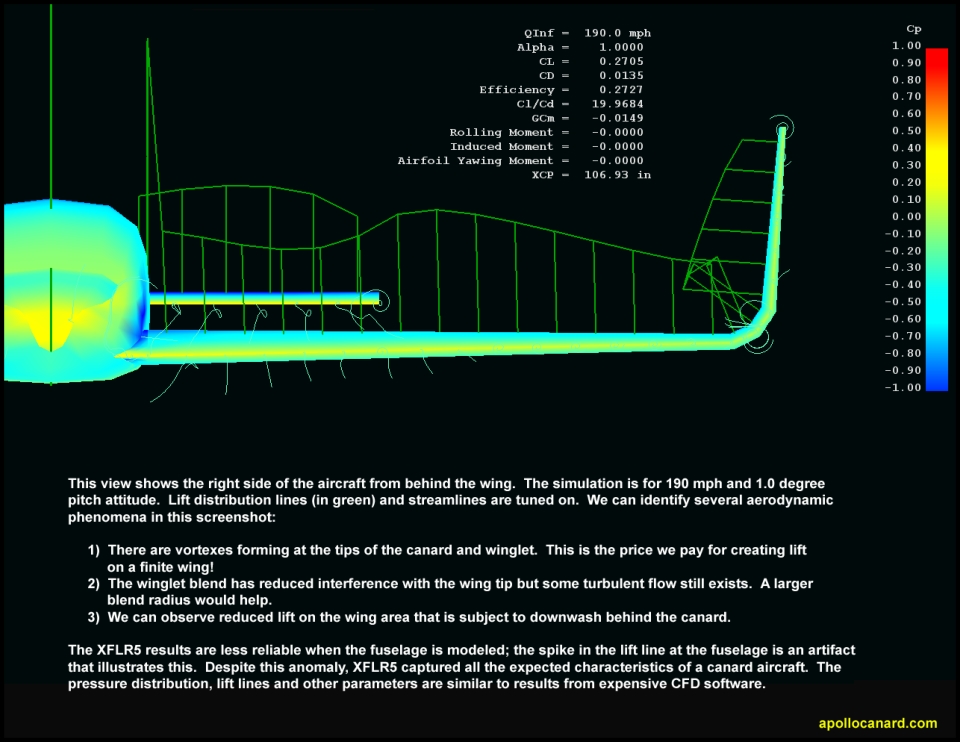

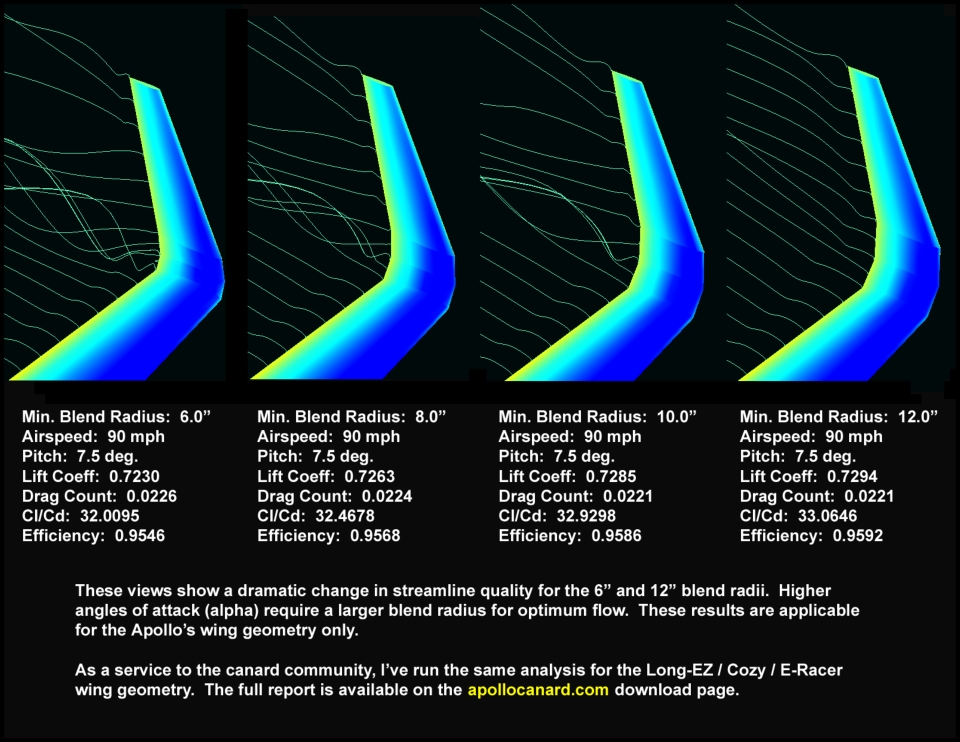

CFD Images Site Map Email the Designer Copyright © 2012 Apollo Canard Lift lines and streamlines illustrate aerodynamic phenomena Low speed/high alpha conditions require a larger blend radius for max efficiency Even the smallest radius on a blended winglet was more efficient than winglets without a blend To be determined To be determined Lift lines and streamlines illustrate aerodynamic phenomena Pressure distribution plot with streamlines turned on To be determined Pressure distribution plot with streamlines turned on
